    Original Paper

    Development, Implementation, and Evaluation of a Telemedicine Service for the Treatment of Acute Stroke Patients: TeleStroke

    1Virgen del Rocío University Hospital, Technological Innovation Group, Seville, Spain

    2Virgen del Rocío University Hospital, Neurological Department, Seville, Spain

    3Virgen del Rocío University Hospital, Clinical Documentation Service, Seville, Spain

    4Virgen del Rocío University Hospital, Research, Development and Innovation Department, Seville, Spain

    5Everis, Research and Technological Development Group, Seville, Spain

    6Seville District, Seville, Spain

    *all authors contributed equally

    Corresponding Author:

    Carlos Parra, BEc

    Virgen del Rocío University Hospital

    Technological Innovation Group

    Avda. Manuel Siurot, s/n

    Centro de Documentación Clínica Avanzada

    Seville, 41013

    Spain

    Phone: 34 955013662

    Fax:34 955013310

    Email:


    ABSTRACT

    Background: Health care service based on telemedicine can reduce both physical and time barriers in stroke treatments. Moreover, this service connects centers specializing in stroke treatment with other centers and practitioners, thereby increasing accessibility to neurological specialist care and fibrinolytic treatment.

    Objective: Development, implementation, and evaluation of a care service for the treatment of acute stroke patients based on telemedicine (TeleStroke) at Virgen del Rocío University Hospital.

    Methods: The evaluation phase, conducted from October 2008 to January 2011, involved patients who presented acute stroke symptoms confirmed by the emergency physician; they were examined using TeleStroke in two hospitals, at a distance of 16 and 110 kilometers from Virgen del Rocío University Hospital. We analyzed the number of interconsultation sheets, the percentage of patients treated with fibrinolysis, and the number of times they were treated. To evaluate medical professionals’ acceptance of the TeleStroke system, we developed a web-based questionnaire using a Technology Acceptance Model.

    Results: A total of 28 patients were evaluated through the interconsultation sheet. Out of 28 patients, 19 (68%) received fibrinolytic treatment. The most common reasons for not treating with fibrinolysis included: clinical criteria in six out of nine patients (66%) and beyond the time window in three out of nine patients (33%). The mean “onset-to-hospital” time was 69 minutes, the mean time from admission to CT image was 33 minutes, the mean “door-to-needle” time was 82 minutes, and the mean “onset-to-needle” time was 150 minutes. Out of 61 medical professionals, 34 (56%) completed a questionnaire to evaluate the acceptability of the TeleStroke system. The mean values for each item were over 6.50, indicating that respondents positively evaluated each item. This survey was assessed using the Cronbach alpha test to determine the reliability of the questionnaire and the results obtained, giving a value of 0.97.

    Conclusions: The implementation of TeleStroke has made it possible for patients in the acute phase of stroke to receive effective treatment, something that was previously impossible because of the time required to transfer them to referral hospitals.

    Interact J Med Res 2012;1(2):e15)

    doi:10.2196/ijmr.2163

    KEYWORDS



    Introduction

    The World Health Organization predicts that by 2030 cerebrovascular disease will be the second leading cause of death in the world; the percentage of deaths due to this disease will increase from 9.7% in 2004 to 12.1% in 2030 [1]. In Andalusia in 2007, cerebrovascular diseases presented a crude mortality rate of 86 per 100,000 inhabitants, 12% higher than that for Spain as a whole [2]. It has been demonstrated that both mortality and disability are reduced when these patients are treated by teams specially trained in administering treatment for this type of disease [3]. Therefore, specialized teams are required at referral hospitals (RH) that can respond to consultations from other hospitals without specialist neurologists. Interhospital networks based on urgent transfer have been shown to only partially ensure geographical equity in access to quality medical interventions at the cost of many unnecessary transfers [4].

    Health care service based on telemedicine can reduce both physical and time barriers in stroke treatments. Moreover, this service connects centers specializing in stroke treatment with other centers and practitioners, thereby increasing accessibility to neurological specialist care and fibrinolytic treatment.

    The principal competitive advantage of the telemedicine system over other similar solutions is its use of communications standards, providing the system with greater flexibility and interoperability [5]. Another advantage of the system is that its development has been directed towards the care process, and expert health personnel have been involved in the design and definition of requirements.

    Previous studies used real-time video conference systems for acute stroke care to evaluate clinical neurological status with the National Institute of Health Stroke Scale (NIHSS) [6-8] and computerized tomography (CT) images [9-16]. The evolution of this technology has led telemedicine to be considered as an essential method for the diagnosis and treatment of patients suspected of having had a stroke. Communications via Internet and mobile phone may be the best means of access for all doctors treating these patients without requiring the patients’ transfer [17]. This method of work is clearly beneficial to patients, their environment, and health institutions [18]. It has been shown that acute phase treatments can be applied without having to travel long distances and in the absence of resources and high-cost complex structures, which are probably not available at all points of care for these patients [19]. Consequently, it is possible for a team of stroke experts to be available 24 hours a day, at any hospital, and at relatively low cost [20].

    Previous Experience in Spain

    There are two studies on previous telemedicine applications for the treatment of stroke patients in Spain at the Vall d’Hebron University Hospital [11] in Barcelona and Son Espases University Hospital [16] in Palma de Mallorca. However, these experiences did not include interoperability capabilities with the Electronic Health Record, which is a central issue for the continuity of care [21].

    Current Study

    This paper describes the development, implementation, and evaluation of a care service based on telemedicine for the emergency treatment of patients with acute stroke at Virgen del Rocío University Hospital in Seville, a fully equipped stroke center.


    Methods

    Development

    The development of the project involves a health care process modeling and development system.

    TeleStroke Process Model

    Business process modeling (BPM) is a methodology that has been applied before in this area [22]. In fact, it has been used in the health care sphere for years, particularly in the field of information system design. Use of this methodology in health care processes continues to become increasingly common [23-27].

    In order to model the treatment process for TeleStroke, we chose business process modeling notation (BPMN), which provides a standard language permitting business process modeling in a workflow format. Its main goal is to provide a standard notation that will be easily read and understood by everyone involved in and affected by the business (ie, the stakeholders). These stakeholders include the users themselves who carry out the process, business analysts who define and redefine processes, technical developers responsible for implementing processes, and business managers and administrators who monitor and direct processes [28].

    Modeling began with an exhaustive study of the documentation related to this condition and the contributions from the group of stroke specialists. Subsequently, this information was processed and made into a BPM model using BPMN.

    TeleStroke System

    The system has been designed to meet the specifications of the World Health Organisation program, eHealth for Health Care Delivery (eHCD). The eHCD states that eHealth technologies must be adapted and applicable to the different health systems [29] in accordance with their possibilities and resources, directed towards specific objectives, complying with international standards and in an established manner. In this way, the international standard Health Level Seven (HL7) [30] is used for the format of data and exchange of information and the protocol, digital imaging, and communication in medicine (DICOM) [31] as the internationally recognized standard for the exchange of medical images. Following the recommendations of the eHCD, we have drawn on the experience of specialist personnel at the RH to decide which functions must be supported by the system to enable the diagnosis and treatment of stroke patients.

    The interoperability scenario is supposed to enable the automation of communication, making the system responsible for collecting patient data and information, medical records, admission details, laboratory data, and images from the picture archiving and communication systems (PACS), etc., to be sent to the RH. One essential and critical requirement in the interoperability of the systems is the traceability of information.

    The stages of the interoperability scenarios involved in TeleStroke are as follows:

    a) Stage 1: Requesting hospital. The patient arrives at the requesting hospital, normally through the emergency department. The patient is examined at the hospital, suspected as a stroke case, and as a result, the doctor calls the TeleStroke Medical Station.

    b) Stage 2: Interconsultation request. The emergency doctor submits an interconsultation request from the TeleStroke Medical Station to the RH. This, in turn, becomes a notification of incoming interconsultation to the mobile phone of the on-call neurologist, who goes to the medical station to collect the patient’s data and accept the interconsultation.

    c) Stage 3: TeleStroke interconsultation. Once the interconsultation has started, the neurologist may ask for images via videoconference, request further details about the patient, or send instructions to be carried out in the examination of the patient.

    d) Stage 4: Closure and record. On conclusion of the examination, the specialist closes the interconsultation, providing details of diagnosis and treatment, so that the doctor at the requesting hospital can complete the information required in the Stroke Record System. The system architecture consists of two different elements: the TeleStroke Medical Station and communication between medical stations.

    Implementation of Platform

    The RH is the Virgen del Rocío University Hospital, which has an Electronic Health Record, called SIDCA, enabling the management of information and knowledge. Two hospitals were selected as requesting hospitals: San Juan de Dios (SJDH) and José María Díaz Domínguez (JMDDH). Work on the development of the platform began with a study of the infrastructure existing in the participating centers responsible for consultation with the RH. Table 1 shows the features of the information systems installed in both hospitals.

    The system is based fundamentally on communication between the requesting hospital where the patient is located and the RH where the specialist group is based.

    Table 1. Information systems at the two requesting hospitals.
    View this table

    Evaluation

    Study Design

    This prospective observational study was conducted from October 2008 to January 2011 with patients who presented acute stroke symptoms. Patient inclusion criteria were: less than 4.5 hours after onset of stroke, age between 18 and 80 years (individualized decision in patients over 80 years according to baseline), and NIHSS scale between 5 and 24. They were examined using TeleStroke in SJDH and JMDDH, which are 16 and 110 kilometers respectively from Virgen del Rocío University Hospital. These hospitals did not have a fully equipped stroke center and patients with acute stroke symptoms could not be treated with fibrinolysis before the introduction of the TeleStroke system.

    The Ethics Committee at Virgen del Rocío University Hospital approved this study.

    Outcome Measures

    We analyzed the number of interconsultation sheets, the percentage of patients treated with fibrinolysis, the time from onset of stroke symptoms to admission (“onset-to-hospital”), time from admission to fibrinolysis (“door-to needle”), time from admission to CT image, and time from onset of stroke symptoms to fibrinolysis (“onset-to-needle”). We also analyzed the reason why patients were not treated with fibrinolysis.

    To evaluate medical professionals’ acceptance of the TeleStroke system, we developed a web-based questionnaire using a Technology Acceptance Model (TAM) [32]. The TAM is a model based on the intended use of new technologies; it was developed to explain and predict the acceptance of information technology by potential users. The methodology has been used in other telemedicine studies [33].

    The original TAM model included two dimensions to determine intended use: perceived usefulness and ease of use. For our study, we extended the original model by including two more dimensions: social norms and enabling conditions. Thus, in the end we evaluated five dimensions. Items used in the questionnaire were chosen from the literature [34]. The validity of the questionnaire’s content was evaluated by a panel of experts consisting of doctors and experts in health technology assessment. Some of the questionnaire items were modified after the review of the experts. Under these conditions, we developed the questionnaire in a web form with 27 questions whose items were sorted randomly to avoid bias. In addition to the scores for questions, we used a ten-point Likert scale: one point for strongly disagree and ten points for totally agree. Once we had created the questionnaire, it was emailed to neurologists at Virgen del Rocío University Hospital, and family physicians, internists, and intensivists at SJDH and JMDDH.

    Data Analysis

    Descriptive analysis of data used absolute (n) and relative (%) frequencies for qualitative variables and mean ± standard deviation (SD) for quantitative variables. We measured the reliability of the instrument by calculating Cronbach alpha.


    Results

    Development

    TeleStroke Process Model

    The process model is universally considered to be the first step in analyzing and improving processes. It defines a model that contains all relevant characteristics of the actual process and makes analyzing that process possible. The process modeling was carried out based on acute-phase stroke treatment guides and protocols and the experience of specialists working with this condition (see Multimedia Appendix 1).

    TeleStroke System

    The TeleStroke Medical Station is responsible for collecting the necessary information from the departmental applications (Hospital Information System, Radiology Information System, Laboratory Information System and PACS) and sending it to the RH. In accordance with the HL7 standard, the information is collected using batch and online procedures. The user interface in the TeleStroke Medical Station has the emergency episode (Figure 1) as a central element.

    The user interface has the following information items:

    1) The interconsultation sheet. Through this sheet the doctor determines when the health personnel at the requesting hospital may consult the RH. It includes the information required by the specialist group to confirm diagnoses. It includes the following elements:

    1. Examination details: information about the “in situ” examination of the patient. This includes vital signs (heart rate, body temperature, etc.), personal history (stroke, heart disease, hypertension, etc.), inclusion and exclusion criteria, scales (NIHSS), complementary tests (hemogram, electrocardiogram, etc.), and complementary details.
    2. Admission details: details of patient’s admission to hospital.
    3. Consultation details: record of the consultation with the RH, including replies, assessments, and diagnoses of the group of specialists at the RH.

    2) Complementary data consist of the following:

    1. Laboratory data: study details (request, date, etc.) and test results, organized by section, chapter, and test.
    2. Radiology data: study details (request, date, etc.) and examination (date, results, etc.) together with CT images.

    3) Navigation tree is based on the data hierarchy from the medical station.

    Figure 1. Data hierarchy from TeleStroke medical station.
    View this figure

    Implementation

    Communication between requesting hospitals and the RH is via Andalusia regional government’s Corporate Network, which has been certified as a safe network. The client equipment that serves as TeleStroke Medical Station is located in a reserved area in the requesting hospital. At this point, we need to highlight the three different elements in communications between medical stations:

    1) Transfer of episode and interconsultation sheet. The interconsultation sheet shared between both hospitals has 4 possible statuses:

    1. Provisional consultation: the user of the TeleStroke Medical Station saves details of the patient’s examination but has not yet consulted the specialist neurologist group.
    2. Definitive consultation: details and consultation are sent to RH (SIDCA).
    3. Provisional reply: the user of the medical station at SIDCA has saved a reply to the consultation but has not yet sent it to the requesting hospital.
    4. Definitive reply: the reply is sent to the requesting hospital.

    During the lifecycle of the interconsultation sheet and its complementary data, data modifications may arise that must be shared with the requesting hospital and the RH.

    2) Processing, sending and displaying images. Images are collected from DICOM servers. Given the basic requirement of speed in image transmission in order to obtain an urgent diagnosis, images are compressed in accordance with the general-purpose image compression standard. JPEG [35] is also used to compress images automatically. The DICOM images enable a series of display functions that are used by health personnel and have also been developed for JPEG images. Figure 2 shows the CT image display including both the TeleStroke Medical Station and the Medical Station at the RH for displaying PACS images compressed using the JPEG standard. All image processing is performed in the web application itself without requiring installation of additional components in the client equipment.

    3) Videoconference and chat. This application allows compartmentalization of the browser window, remote desktop, or blackboard application. It also permits sending files and recordings of videos or sessions.

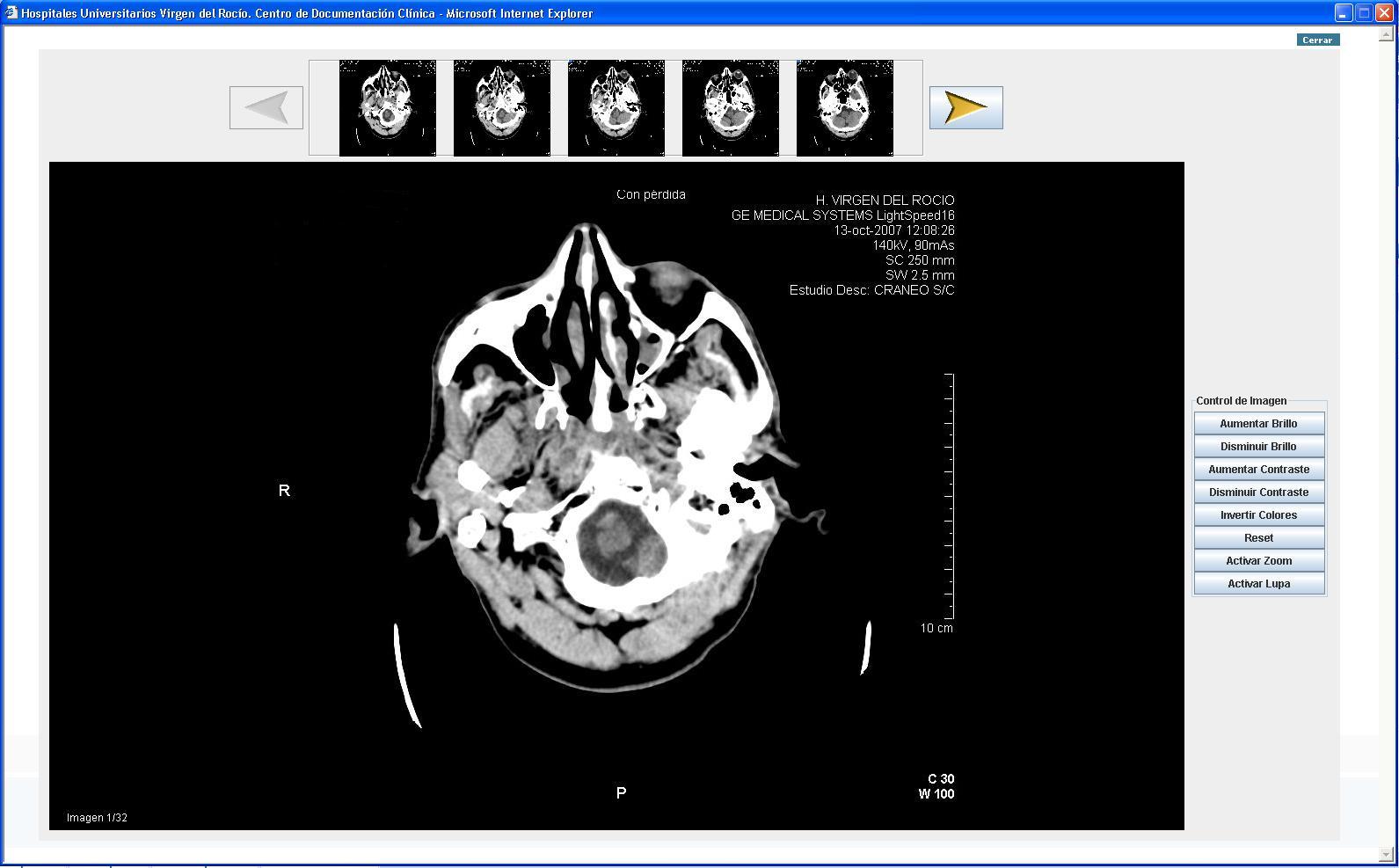

    Figure 2. Computerized tomography image.
    View this figure

    Evaluation

    A total of 28 patients, 19 from SJDH and 9 from JMDDH, were evaluated through interconsultation sheets. Table 2 summarizes the main characteristics of patients.

    Out of 28 patients, 19 (68%) received fibrinolytic treatment. These 19 patients were those who met the inclusion criteria. We analyzed four process indicators for fibrinolysis delivery (Table 3). The most common reasons for not treating with fibrinolysis were: clinical criteria in six out of nine patients (66%) and beyond the time window in three out of nine patients (33%).

    Table 4 summarizes the main characteristics of the medical professionals who completed the questionnaire on acceptance of Telestroke. In total, we sent out 61 questionnaires, of which we received 34 (56%) completed. Table 5 shows the descriptive statistics analysis of the items questionnaire. As shown, the mean values for each item were over 6.50, indicating that respondents positively evaluated each item. To assess the reliability of the questionnaire we calculated the Cronbach alpha value, obtaining a value of 0.97.

    Table 2. Characteristics of patients; data are presented as n (%).
    View this table
    Table 3. Indicators in process of fibrinolysis delivery.
    View this table
    Table 4. Characteristics of medical professionals who have used TeleStroke; data are presented as n (%).
    View this table
    Table 5. Descriptive statistics of the TAM questionnaire item.
    View this table

    Discussion

    The implementation of TeleStroke has made it possible for patients in the acute phase of stroke to receive effective treatment, something that was previously impossible because of the time required to transfer them to the RH. In 2006, before implementing the TeleStroke service, 57% of acute stroke patients transferred to the Virgen del Rocío University Hospital emergency department from another hospital presented more than 4.5 hours after the onset of symptoms [36]. However, it is important to note that patients who arrived at the Virgen del Rocío University Hospital emergency department between 3 and 4.5 hours after the onset of symptoms may not be treated with fibrinolysis because of the time required for performing diagnostic tests. Given that this situation does not satisfy the recommended maximum time for treatment, it justifies the deployment of the telemedicine service.

    System reliability is vital for the successful implementation of a telemedicine system with a high impact on care. In this sense, formal and rigorous methods of risk management are required, as is good capacity management of the technology to guarantee the service level. We demonstrated that reliability was also essential, and we subjected the system to an exhaustive testing process to ensure this.

    Several technological upgrades were carried out during the period of the study in order to increase the system usability and reliability, improving the medical staff access and therefore decreasing the “door-to-needle” time. In turn, the application of BPM modeling techniques to model the care protocol proved to be the right choice because it led to explicit agreement between health professionals on the best way to work. This will make it easier to export it to the rest of the Andalusian Public Health System.

    The need to accelerate the communication time of the CT images to the RH has been made clear. Despite conversion to JPG format greatly reducing file size, this remains the most important time period in the whole process. To this end, we have checked the diagnostic validity of JPEG format CT images with regards to DICOM format CT images in a complementary study that is awaiting publication. We found a far higher percentage of patients who had received fibrinolysis compared to other studies that examined stroke patients through videoconference [9,12-14,16], while the number of patients surveyed was higher in most of these studies. The application of BPM modeling techniques may contribute to a higher fibrinolytic treatment rate facilitating agreement and training among professionals involved in the care process.

    The CT image is the critical test for the successful application of fibrinolysis to patients. The mean time from admission to CT image was 33 minutes, higher than other studies [16]. In our study, one patient had a symptomatic intracranial haemorrhage detected in the CT image. The mean “onset-to-hospital” time was 69 minutes. Similar studies [9,12-14,16] reported this time ranged from 36 to 84 minutes. The mean “door-to-needle” time was 82 minutes. Similar studies [9,11-12,16] reported this time ranged from 53 to 106 minutes. The mean “onset-to-needle” time was 150 minutes. Similar studies [9-12,14,16] reported this time ranged from 122 to 157 minutes.

    There were no technical failures preventing a clinical response being given to the patient within the established limits, although there were delays in receiving the CT image and problems with sound and images from the videoconferences that increased response times.

    The acceptance of the TeleStroke system by health care professionals is essential for the incorporation of eServices to be successful. To assess the reliability of the questionnaire, we obtained a value of 0.97 for Cronbach alpha, higher than the recommended value of 0.7. Results of the TAM questionnaire indicate a very positive perception of questionnaire items, particularly the Intention to Use and Subjective Norms dimensions.

    The authors have identified two important limitations in this study: the small sample size and the lack of patient outcomes related to mortality and functional status. These issues will be covered in a future study.

    As current evidence is limited, a cost-effectiveness analysis may be required into the economic impact of telemedicine in acute stroke treatment [37] following the methodology applied in a recent study [38]. Currently, we are working on adapting the TeleStroke system to be deployed in the rest of the Andalusian Public Health System. A new line of work is the development of mobility technology to capture and transmit videoconference and CT data to allow swifter diagnosis and treatment of fibrinolysis in acute stroke patients [39].

    Taking all of these discussion factors into account, we can state that the implementation of a telemedicine service for the treatment of acute stroke patients at Virgen del Rocío University Hospital is feasible, and it has been proven that TeleStroke facilitates the accessibility to neurological specialist care and fibrinolytic treatment in hospitals where a fully equipped stroke center is not available.

    Acknowledgments

    This work has been conducted within the framework of the R&D project “Desarrollo e Implantación de un nuevo dispositivo asistencial para la atención a pacientes con ictus basado en la Telemedicina (Teleictus) / Develop and implement a new treatment device for stroke patient care based on telemedicine: TeleStroke”, financed by the Spanish Ministry of Science and Innovation.

    We thank all who participated in this project and particularly those who directly or indirectly contributed to the publication of this article from San Juan de Dios Hospital and José María Díaz Domínguez Hospital.

    We thank the Network for Innovation in Medical Technologies and Health (Red ITEMAS in Spanish), dossier number RD09/0077/00025, promoted by the Carlos III Health Institute.

    Conflicts of Interest

    Francisco J. Fernández works at Everis Group. The remaining authors have no conflict of interest.

    Multimedia Appendix 1

    Process model TeleStroke.

    JPG File, 210KB

    References

    1. World Health Organization. World health statistics. Geneva, Switzerland: WHO; 2008.
    2. Regidor E, Gutiérrez-Fisac JL, Alfaro M. Health Indicators. Spain: Ministry of Health and Social Policy; 2009.
    3. Stroke Unit Trialists' Collaboration. Organised inpatient (stroke unit) care for stroke. Cochrane Database Syst Rev 2007(4):CD000197. [CrossRef] [Medline]
    4. Ribo M, Molina CA, Pedragosa A, Sanclemente C, Santamarina E, Rubiera M, et al. Geographic differences in acute stroke care in Catalunya: impact of a regional interhospital network. Cerebrovasc Dis 2008;26(3):284-288. [CrossRef] [Medline]
    5. Klein GO. Standardization of health informatics--results and challenges. Methods Inf Med 2002;41(4):261-270. [Medline]
    6. Handschu R, Littmann R, Reulbach U, Gaul C, Heckmann JG, Neundörfer B, et al. Telemedicine in emergency evaluation of acute stroke: interrater agreement in remote video examination with a novel multimedia system. Stroke 2003 Dec;34(12):2842-2846 [FREE Full text] [CrossRef] [Medline]
    7. Shafqat S, Kvedar JC, Guanci MM, Chang Y, Schwamm LH. Role for telemedicine in acute stroke. Feasibility and reliability of remote administration of the NIH stroke scale. Stroke 1999 Oct;30(10):2141-2145 [FREE Full text] [Medline]
    8. Wang S, Lee SB, Pardue C, Ramsingh D, Waller J, Gross H, et al. Remote evaluation of acute ischemic stroke: reliability of National Institutes of Health Stroke Scale via telestroke. Stroke 2003 Oct;34(10):e188-e191 [FREE Full text] [CrossRef] [Medline]
    9. Audebert HJ, Kukla C, Clarmann von Claranau S, Kühn J, Vatankhah B, Schenkel J, TEMPiS Group. Telemedicine for safe and extended use of thrombolysis in stroke: the Telemedic Pilot Project for Integrative Stroke Care (TEMPiS) in Bavaria. Stroke 2005 Feb;36(2):287-291 [FREE Full text] [CrossRef] [Medline]
    10. Meyer BC, Raman R, Hemmen T, Obler R, Zivin JA, Rao R, et al. Efficacy of site-independent telemedicine in the STRokE DOC trial: a randomised, blinded, prospective study. Lancet Neurol 2008 Sep;7(9):787-795 [FREE Full text] [CrossRef] [Medline]
    11. Pedragosa A, Alvarez-Sabín J, Molina CA, Brugués J, Ribó M. [Endovenous thrombolysis in a district hospital using the telestroke system]. Rev Neurol 2011 Aug 1;53(3):139-145 [FREE Full text] [Medline]
    12. Schwamm LH, Rosenthal ES, Hirshberg A, Schaefer PW, Little EA, Kvedar JC, et al. Virtual TeleStroke support for the emergency department evaluation of acute stroke. Acad Emerg Med 2004 Nov;11(11):1193-1197. [CrossRef] [Medline]
    13. Waite K, Silver F, Jaigobin C, Black S, Lee L, Murray B, et al. Telestroke: a multi-site, emergency-based telemedicine service in Ontario. J Telemed Telecare 2006;12(3):141-145. [CrossRef] [Medline]
    14. Wang S, Gross H, Lee SB, Pardue C, Waller J, Nichols FT, et al. Remote evaluation of acute ischemic stroke in rural community hospitals in Georgia. Stroke 2004 Jul;35(7):1763-1768 [FREE Full text] [CrossRef] [Medline]
    15. Wiborg A, Widder B, Telemedicine in Stroke in Swabia Project. Teleneurology to improve stroke care in rural areas: The Telemedicine in Stroke in Swabia (TESS) Project. Stroke 2003 Dec;34(12):2951-2956 [FREE Full text] [CrossRef] [Medline]
    16. Carmen Jiménez M, Tur S, Legarda I, Vives B, Gorospe A, José Torres M, et al. [The application of telemedicine for stroke in the Balearic Islands: the Balearic Telestroke project]. Rev Neurol 2012 Jan 1;54(1):31-40 [FREE Full text] [Medline]
    17. Meyer BC, Lyden PD, Al-Khoury L, Cheng Y, Raman R, Fellman R, et al. Prospective reliability of the STRokE DOC wireless/site independent telemedicine system. Neurology 2005 Mar 22;64(6):1058-1060. [CrossRef] [Medline]
    18. Audebert HJ, Wimmer ML, Hahn R, Schenkel J, Bogdahn U, Horn M, TEMPIS Group. Can telemedicine contribute to fulfill WHO Helsingborg Declaration of specialized stroke care? Cerebrovasc Dis 2005;20(5):362-369. [CrossRef] [Medline]
    19. Hess DC, Wang S, Hamilton W, Lee S, Pardue C, Waller JL, et al. REACH: clinical feasibility of a rural telestroke network. Stroke 2005 Sep;36(9):2018-2020 [FREE Full text] [CrossRef] [Medline]
    20. Fisher M. Developing and implementing future stroke therapies: the potential of telemedicine. Ann Neurol 2005 Nov;58(5):666-671. [CrossRef] [Medline]
    21. Giordano R, Clark M, Goodwin N. Perspectives on telehealth and telecare. London: WSD Action Network; 2011.
    22. Panzarasa S, Maddè S, Quaglini S, Pistarini C, Stefanelli M. Evidence-based careflow management systems: the case of post-stroke rehabilitation. J Biomed Inform 2002 Apr;35(2):123-139. [Medline]
    23. Mans R, Schonenberg H, Leonardi G, Panzarasa S, Cavallini A, Quaglini S, et al. Process mining techniques: an application to stroke care. Stud Health Technol Inform 2008;136:573-578. [Medline]
    24. Parra Calderón CL, Framiñán Torres JM, Pérez González P, Montes Worboys M, de la Higuera González JM, Melero Bellido JM. Metodologia de Modelado de Procesos en Servicios de Salud utilizando Telemedicina. I+S: Informática y Salud 2005 Mar;51:16-25.
    25. Rojo MG, Rolón E, Calahorra L, García FO, Sánchez RP, Ruiz F, et al. Implementation of the Business Process Modelling Notation (BPMN) in the modelling of anatomic pathology processes. Diagn Pathol 2008;3 Suppl 1:S22 [FREE Full text] [CrossRef] [Medline]
    26. Ruffolo M, Curia R, Gallucci L. Process Management in Health Care: A System for Preventing Risks and Medical Errors. In: van der Aalst WMP, Benetallah B, Casati F, Curbera F, editors. Business Process Management. Berlin/Heidelberg: Springer-Verlag; 2005:334-343.
    27. Svagård I, Farshchian BA. Using business process modelling to model integrated care processes. Experiences from a European Project. In: Lecture Notes in Computer Science. Berlin: Springer; 2009:922-925.
    28. White SA, Miers D. BPMN Modeling and Reference Guide: Understanding and Using BPMN. 2008.   URL: http://www.google.com/search?tbs=bks:1&q=isbn:0977752720 [accessed 2012-11-05] [WebCite Cache]
    29. World Health Organization. eHealth for Health-care Delivery: Strategy 2004-2007. Geneva: WHO; 2007.
    30. Health Level Seven International.   URL: http://www.hl7.org/ [accessed 2012-11-05] [WebCite Cache]
    31. Digital Imaging and Communications in Medicine.   URL: http://medical.nema.org/ [accessed 2012-05-08] [WebCite Cache]
    32. Davis FD. Perceived usefulness, perceived ease of use and user acceptance of information technology. MIS Q 1989;13(3):319-339.
    33. Hu PJ, Chau P, Tam KY. Examining the technology acceptance model using physician acceptance of telemedicine technology. J Manag Inform Syst 1999;16:91-112.
    34. Holden RJ, Karsh BT. The technology acceptance model: its past and its future in health care. J Biomed Inform 2010 Feb;43(1):159-172 [FREE Full text] [CrossRef] [Medline]
    35. Joint Photographic Experts Group.   URL: http://www.jpeg.org/ [accessed 2012-05-10] [WebCite Cache]
    36. Palomino-García A, Moniche-Álvarez F, de la Torre-Laviana FJ, Cayuela-Domínguez A, Vigil E, Jiménez-Hernández MD. [Factors that affect time delays to fibrinolytic treatment in ischaemic stroke]. Rev Neurol 2010 Dec 16;51(12):714-720 [FREE Full text] [Medline]
    37. Johansson T, Wild C. Telemedicine in acute stroke management: systematic review. Int J Technol Assess Health Care 2010 Apr;26(2):149-155. [CrossRef] [Medline]
    38. Nelson RE, Saltzman GM, Skalabrin EJ, Demaerschalk BM, Majersik JJ. The cost-effectiveness of telestroke in the treatment of acute ischemic stroke. Neurology 2011 Oct 25;77(17):1590-1598. [CrossRef] [Medline]
    39. Walter S, Kostpopoulos P, Haass A, Helwig S, Keller I, Licina T, et al. Bringing the hospital to the patient: first treatment of stroke patients at the emergency site. PLoS One 2010;5(10):e13758 [FREE Full text] [CrossRef] [Medline]


    Abbreviations

    BPM: Business Process Modeling
    BPMN: Business Process Modeling Notation
    CT: Computerized Tomography
    DICOM: Digital Imaging and Communication in Medicine
    eHCD: eHealth for Health Care Delivery
    HL7: Health Level Seven
    JMDDH: José María Díaz Domínguez Hospital
    NIHSS: National Institute of Health Stroke Scale
    RH: Referral Hospital
    SJDH: San Juan de Dios Hospital
    SD: Standard Deviation
    TAM: Technology Acceptance Model


    Edited by G Eysenbach; submitted 11.05.12; peer-reviewed by J Brice, S Davis, D Jacobs; comments to author 30.07.12; revised version received 03.08.12; accepted 21.09.12; published 15.11.12

    ©Carlos Parra, Francisco Jódar-Sánchez, M. Dolores Jiménez-Hernández, Eduardo Vigil, Alfredo Palomino-García, Francisco Moniche-Álvarez, Francisco Javier De la Torre-Laviana, Patricia Bonachela, Francisco José Fernández, Aurelio Cayuela-Domínguez, Sandra Leal. Originally published in the Interactive Journal of Medical Research (http://www.i-jmr.org/), 15.11.2012.

    This is an open-access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work, first published in the Interactive Journal of Medical Research, is properly cited. The complete bibliographic information, a link to the original publication on http://www.i-jmr.org/, as well as this copyright and license information must be included.
